Stainless Steel Wire Mesh Chain Conveyor Belt Spiral Wire Mesh Belt
Wire mesh conveyor belt description
Spiral metal conveyor belt is the most common type of metal conveyor belt, it is divided into left and right spiral mesh strips, through the strip connection, two end edge welding to ensure the width of the mesh belt.
Wire mesh conveyor belt specification

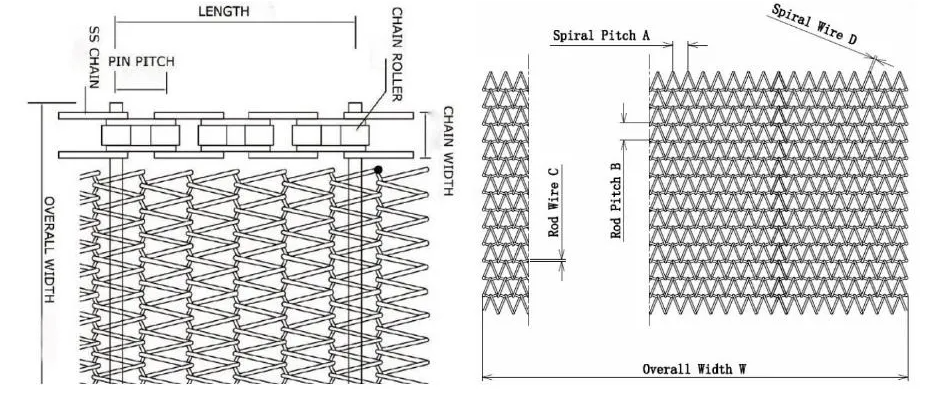

| Balanced Weave Conveyor Belts specifications |
| Item No. | Spiral wire pitch | Cross rod pitch | Spiral wire diameter | Cross wire diameter |
| mm | mm | mm | mm |
| BWCB-001 | 4 | 4 | 0.9 to 1.2 | 1.2 to 1.6 |
| BWCB-002 | 5 | 6.4 | 0.9 to 1.2 | 1.2 to 1.6 |
| BWCB-003 | 5 | 5 | 0.9 to 1.6 | 1.2 to 1.6 |
| BWCB-004 | 6 | 6 | 0.9 to 1.6 | 1.2 to 1.6 |
| BWCB-005 | 6 | 8 | 0.9 to 1.2 | 1.2 to 1.6 |
| BWCB-006 | 6 | 10 | 0.9 to 1.6 | 1.2 to 1.6 |
| BWCB-007 | 8 | 12 | 1.2 to 2.0 | 1.2 to 2.5 |
| BWCB-008 | 8 | 13 | 1.2 to 2.0 | 1.2 to 2.5 |
| BWCB-009 | 8 | 15 | 1.2 to 2.0 | 1.2 to 2.5 |
| BWCB-010 | 11 | 15 | 1.2 to 2.0 | 1.2 to 2.5 |
| BWCB-011 | 11 | 20 | 1.6 to 3.0 | 1.6 to 3.0 |
| BWCB-012 | 11 | 25 | 1.6 to 3.0 | 1.6 to 3.0 |
| BWCB-013 | 11 | 27 | 1.6 to 3.0 | 1.6 to 3.0 |
| BWCB-014 | 15 | 20 | 1.6 to 3.0 | 1.6 to 3.0 |
| BWCB-015 | 15 | 25 | 1.6 to 3.0 | 1.6 to 3.0 |
| BWCB-016 | 22 | 23 | 1.6 to 3.0 | 1.6 to 3.0 |
| BWCB-017 | 22 | 33 | 1.6 to 3.0 | 2.0 to 4.0 |
| Note: 1. If flat wire, please give us cross section. |
| 2. Custom specification is available if you can't find the suitable size. |
Wire mesh conveyor belt Features
1.Wide selection of materials, mesh can be customized.
2.Smooth surface, high toughness, strong corrosion resistance, high tensile strength, good air permeability, not easy to deformation, durable and other special functions.
3.Wire diameter can be provided according to customer's request.
4.It has the characteristics of acid resistance, alkali resistance, low resistance and high temperature resistance.
5.It has good conveying function, fracture resistance and oxidation resistance.
6.Easy installation, smooth operation, no deflection Suitable for high density transportation in small.
Wire mesh conveyor belt Applications
1. Annealing Oven Conveyor Belts
2. Cooker Conveyor Belts
3.Fryer Conveyor Belts
4. Drying Conveyor Belts
5. Cooling Conveyor Belts
6. Washing Conveyor Belts
7. Take over Conveyor Belts
8. Baking ovens
9. Biscuit ovens
10. Glass ovens
11. Decoration ovens
12.Hardening ovens
